1.Introduction
The metal steel coil cut to length line can do uncoiling, straightening, gauging, cross-cutting to length and stacking work. It mainly includes uncoiler, straightener, gauge, shearer, conveyor,stacker, hydraulic system, pneumatic system and electrical system, etc. The line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolled carbon steel, tinplate, stainless steel and all e other kinds of metal materials with surface coating. The cut to length line is controlled by PLC system. The information of length, shearing numbers and speed can be input to the PLC systems via HMI(Human Machine Interface) touch screen. When the needed shearing quantity is reached the line can stop automatically.
2.Process
Our high speed metal coils cut to length line is a popular method of creating flat, rectangular blanks from larger metal coils. Also known as CTL Line, our machine will uncoil the larger material or master coil, straighten or flatten it, and then cut it to the required length as it moves through the line, and ultimately stack it into a bundle. Steel does not come off of a larger coil in a flat form. It needs to be stretched into flatness while on the CTL. Our machine uses roller leveling technology to stretch and compress the material. This method increases flatness tolerance and material stability. The ultimate use of the cut material may warrant precision cutting accuracy that meets your exact specifications.

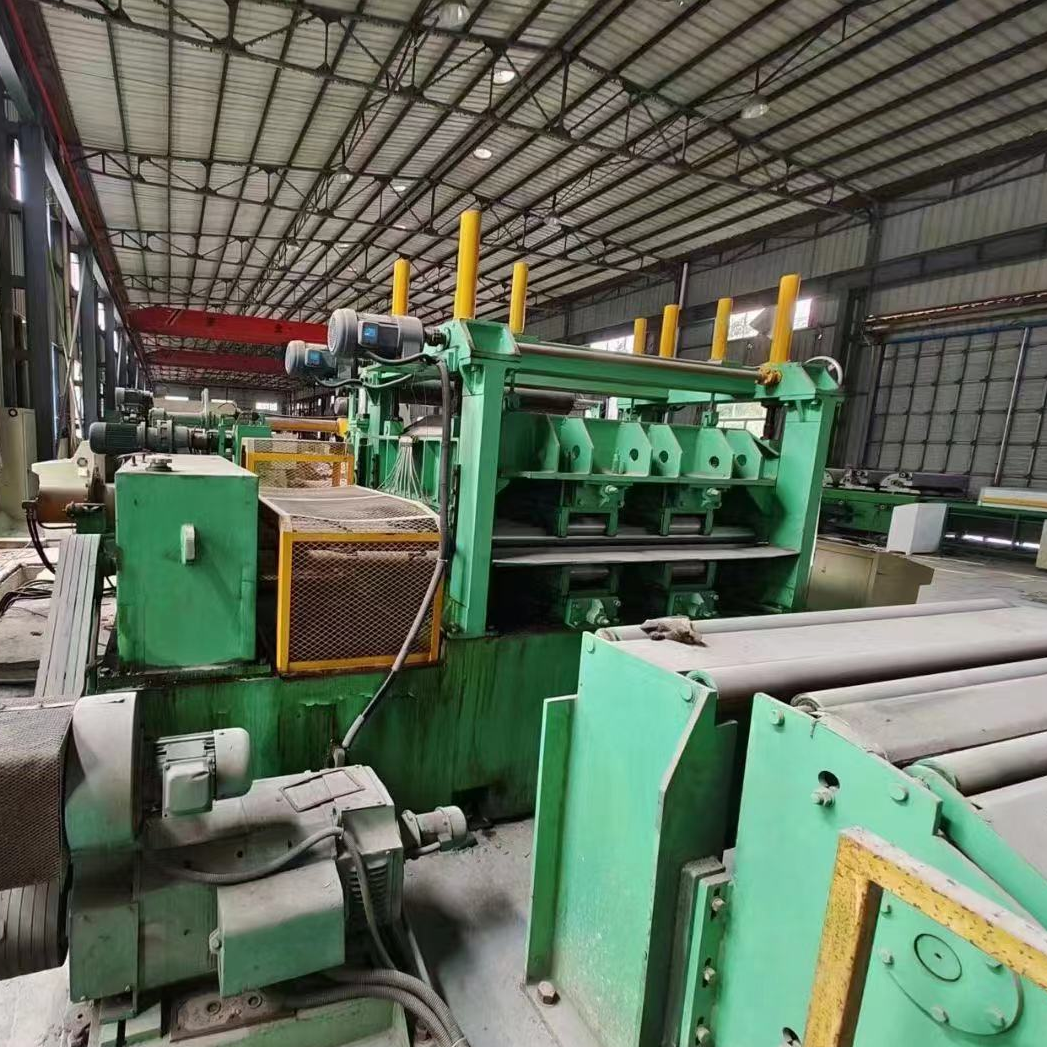

Here below the photo for you reference:
3.List of machine
Coiling carriage
Unwinder
Stripper entry table
Mandrel uncoiler
Side guide rail
Straightening machine
Measuring table
Hydraulic shears
Conveyor
Pneumatic stacker
Unloading tables
Hydraulic systems
Pneumatic systems
Electrical systems
4.Specification
5.Parameter
Opening thickness: 8-25 mm
Shear length: 4-12m
Opening width: 1000-230mm
Trimming thickness: 8 - 20 mm (Q235); Q345 plate thickness ≤ 16mm
Sizing accuracy: length ≤ 1.5mm (1000mm plate length);
Diagonal line ≤ 2mm (1000mm plate length);
Edge cutting sickle bending ≤ 5mm (12000mm plate length)
Speed of production line: 25m/min when the thickness of coiled material is less than 12mm
15m/min at 12-20mm
Leveling accuracy: 1.5mm/m2
Continuous shearing times: 8 times/min
Total length of automatic line:~92M
Total electric load:~580KW
Stacking device:
a. Length adjustment range: 4000-12000mm
b. Width adjustment range: 1000-2300mm
6.Features of our steel cut to length line machine:
1. Our CNC metal cut to length line uses a roll feeding, AC servo drive.
2. Our cut to length line is suitable for hot rolling carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.
3. Coil metal cut to length line has a fully digital length control system that ensures fast positioning with little error.
4. Sheet Coil cut to length line has a hard chrome plated surface and is durable and abrasion resistant.
