ERW 25 pipe mill introduction
High Frequency Steel Pipe Making Machine, covering range from 8 mm to 38mm,and thickness is 0.3 mm to 1.5mm. The pipe production machine mainly produces carbon steel pipes,galvanized steel pipes. And this pipe making machine not only can make round pipe, square pipe, rectangle pipe, oval pipe and other irregular pipe as well.
Machine model: HF25
Pipe Material:Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil.
Round Pipe diameter: Φ8mm—Φ38mm
Round Pipe thickness: 0.3mm—1.5mm
Square Pipe diameter: F10x10mm—F30x30mm
Square Pipe thickness: 0.3mm—0.8mm
Production speed: ≤120m/min
Model | Material | Round Pipe Diameter | Round Pipe Thickness | Production Speed |
HF20 | Carbon steel coil, galvanized steel coil, other hot or cold rolled steel coil. | 8mm -32mm | 0.2mm -1.2mm | ≤120m/min |
HF25 | 8mm -38mm | 0.3mm -1.5mm | ≤120m/min | |
HF28 | 10mm -50.8mm | 0.35mm -1.8mm | ≤120m/min | |
HF32 | 16mm -50.8mm | 0.4mm -2.0mm | ≤120m/min | |
HF45 | 16mm -76mm | 0.5mm -2.5mm | ≤120m/min | |
HF50 | 19mm -76mm | 0.5mm -3.25mm | ≤110m/min | |
HF60 | 22mm -76mm | 0.6mm -3.5mm | 20-80m/min | |
HF50 | 38mm -89mm | 0.8mm -3.75mm | 20-80m/min |
Products Description
Process of the pipe production line
Raw material- Material feeding - Shearing and butt welding - Material storing - Material flattening - Feeding - Roll forming - Seam direction guiding - Extruding - High frequency induction welding - Welding burr removing - Water cooling - Pipe shape and size adjusting - Computerized saw cutting - Pipe automatic unloading - Checking and packing
Raw material uncoiler
It’s used to support the steel strip roll and feed raw material for the production line.
Structure mode:Double working position
Vertical material accumulator
It’s used to store and feed raw materials for forming machine so that the machine can work continuously.
Forming and sizing machine
It’s the main equipment of the production line. Rollers can make steel strip form into pipes of variety shapes. It consists of forming part , welding part and sizing part.

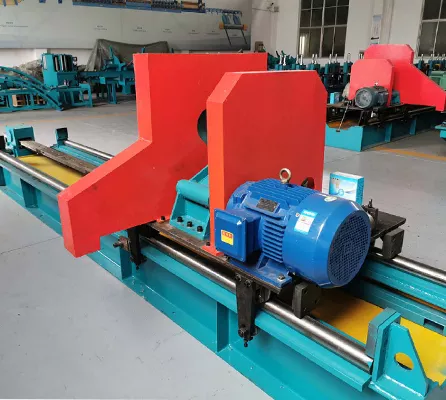

Computer flying saw
With the high precision STD control system and quick reaction of mechanical system, the cutting saw has reliable synchronization performance and high precision cutting length.
Automatic pipe unloading platform
It is an unloading platform of pipes cut by computerized saw. After the pipes falling down, workers can quickly check the quality and package them for preparation of transportation.
Pipe Application
Product packaging
Plastic film packaging for motors,Naked machine;
It can also be packaged according to customer needs.
