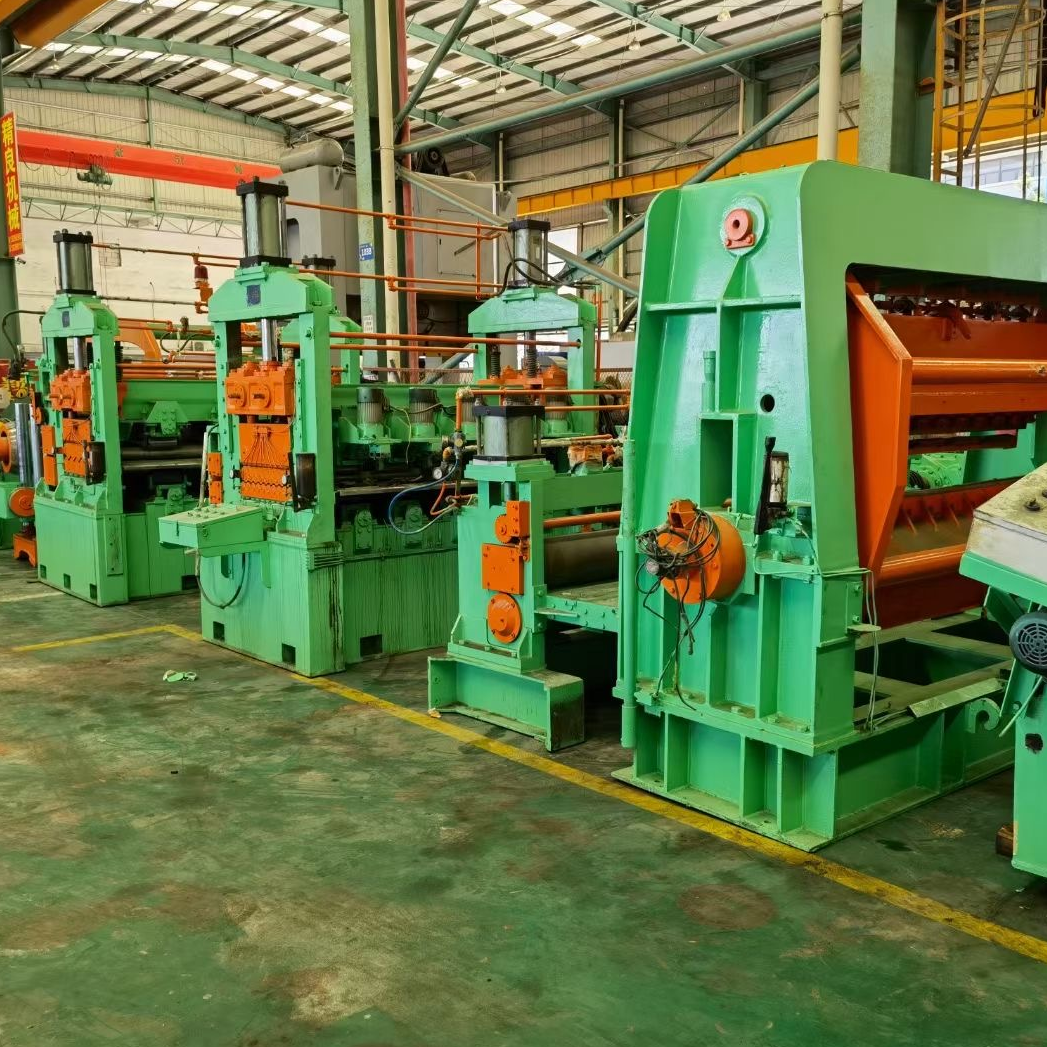

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well.The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.
| Material | HR,CRS and GI |
Tensile strength | δb≤450Mpa，δS≤260Mpa | |
Steel thickness | 0.3-3mm | |
Steel width | 500-1600 | |
Steel coil I.D | φ480-520 mm | |
Steel coil O.D | φ1600mm（Max） | |
Steel coil weight | 15T | |
| knife pivot diameter | Ф200 mm |
Knife pivot material | 40Cr | |
Blades specification | Φ200mmXφ340mmX15mm | |
Blade material | 6CrW2Si | |
Slit parameter | Max slit quantity | 5 pcs (3mm) 25 pcs(0.3mm) |
Width precision | ≤±0.05mm/2M | |
Mini slit strips width | 20mm | |
| Power | 380V/50Hz/3Ph |
Line speed | 0-100m/min | |
Capacity | 210 Kw | |
Whole line Dimension | 25m(L)X8m(W) | |
Operator needed | 1 mechanical engineer ,2 common workers | |
Line direction | From right to left(Face to machine) | |
Machine color | White grey |
Product Paramenters
