1.Introduction

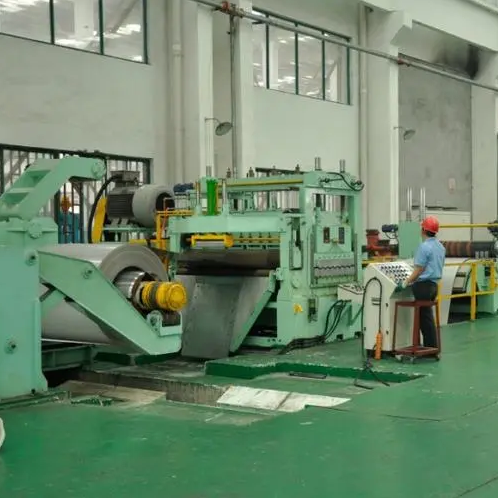

The cut to length line, also known as flattening shear line, uncoiling line and cross cutting line, is used to cut the metal coils into flat sheets of required length through uncoiling, leveling, sizing and stacking. It is suitable for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after surface coating.
2.Composition
Generally, this production line is applicable to steel coil deep processing enterprises, white household appliances manufacturers, etc. It is an auxiliary processing equipment for steel products. Generally, the input is large and the output is relatively balanced. A standard production line consists of a storage platform, a feeding trolley, an auxiliary support, a uncoiler, a telescopic shovel head, a leveling machine, a looper, a side guide, a five roller rough leveling and sizing machine, a shear, a conveyor, a stacking rack, and a discharging trolley. The specific configuration can be customized according to customer needs
3.List of machine
1. Hydraulic Coil car
2. Hydraulic Decoiler
3. Hydraulic entry guide
4. Four/Six hi leveler
5. Loop bridge
6. Side guide roller
7. NC servo feeder leveler
8. Measure system
9. Shearing Machine
10. Conveyor table
11. Pneumatic discharge device
12. Hydraulic lifting table
13. Unloading stacking car
14. Hydraulic Systems
15. Pneumatic Systems
16. Electrical System PLC Control
4.Use
1. Coil should be put right to keep the weight balanced. The coil car can reset only after fix and expand the coil into decoiler tightly.
2. First press the coil head by traction roll, then open the package of the coil, to prevent the coil head bounced off.
3. Operators shall not stand on the coil when machine running.
4. Do not move coil directly by hand.
5. Stop and check the machine units immediately when find fault. Only check out and correct, the machine can restart.
6. Do not remove or change circuit. In case has problem, please consult professional technicians.
5.Features of our steel cut to length line machine:
1. Our CNC metal cut to length line uses a roll feeding, AC servo drive.
2. Our cut to length line is suitable for hot rolling carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.
3. Coil metal cut to length line has a fully digital length control system that ensures fast positioning with little error.
4. Sheet Coil cut to length line has a hard chrome plated surface and is durable and abrasion resistant.
5. CNC metal cut to length line used together with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment.
6.Advantage
1. High degree of automation, easy & reliable operation
2. High length precision, high sheet flatness
3. Low cost
7.Service
1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take video for the customer and customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas
