1. ERW 50 pipe mill introduction
ERW pipe production line is used to produce ERW pipe and cold bending profile steel with material of mild steel & low carbon steel of cold and hot roll carbon steel and galvanized roll carbon steel in the fields of metallurgy, construction, traffic, mechanism and vehicle. ERW 50Tube Mill can make steel strip of a certain specification into round pipe and square and rectangular pipe through cold bending forming and high frequency welding. The forming and sizing machine is designed well, so ERW 50 Tube Mill can produce the perfect pipe.
1.Pipe OD :16-50 mm
2.Pipe thickness: 0.7-3.0 mm
3.Speed : 110 m /min Maximum
4.HF welder 200 kw Motor 75kw
5.Horizontal shaft 60 mm Vertical roll 45 mm
6.Manufacturer: Jiansu Nanyang
2.Process
{steel strip} --- un-coiler --- (opener & straightener & pincher & leveler) --- strip-head shearer & butt welder station --- vertical cage accumulator or horizontal spiral accumulator loop --- forming M/C (main driving unit + flattening unit + breakdown section + fin pass section +seam guiding stand + high frequency induction welding system + squeeze welding roller stand + outside scrafing unit + horizontal ironing stand) --- emulsion cooling section --- sizing M/C (main driving unit + sizing section + speed testing unit + straightener + pull-out stand) --- CNC flying saw under computer control --- conveyor table.
3.Technical parameter
4.List of 50 pipe mill
1. Uncoiler
2. Vertical Accumulator
3. Cutting & welding
4. Forming sizing mill
5. Cutting saw
6. Run-out roll
7. HF welder
5.Advantage
High production efficiency, line speed can be up to 110m/min.
High automation of ERW 50 Tube Mill.
High strength, the machine works stably at a high speed, which improves product quality.
High good product rate, reach to 96.5%
6. Application:
GI, construction, automobile, general mechanical tubing, furniture, agriculture, chemistry

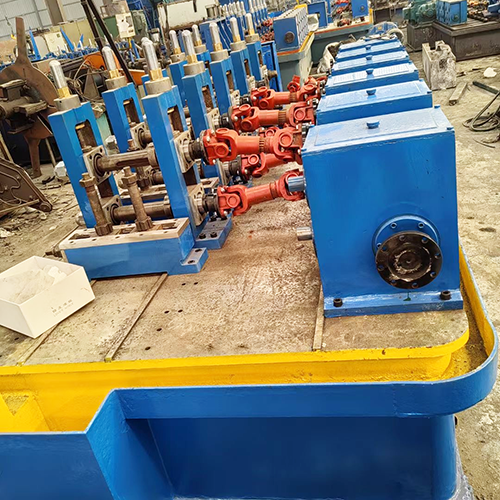

7. Photo
