1. ERW 89 pipe mill introduction
Steel Pipe Making Machine also named Tube Mill Machine, Tube mill machines are mainly divided into two categories: one is a common high-frequency welded pipe machine or ERW Tube Mill Machine, and the other is a stainless steel pipe making machine. The high-frequency welded pipe machine is mainly used to produce various iron pipes, carbon pipes, etc.; Stainless pipe making machine is mainly used to produce various stainless steel decorative pipes. The main processes of the tube mill machine are: uncoiling, forming, welding, forming, sizing, cutting and other processes
1.Pipe OD :22-89mm
2.Pipe thickness: 0.9-4.0 mm
3.Speed : 80 m /min Maximum
4.HF welder 300 kw Motor 120kw
5.Horizontal shaft 80 mm Vertical roll 50 mm
6.Manufacturer: Yangzhou Zhongfu
2.Process
{steel strip} --- un-coiler --- (opener & straightener & pincher & leveler) --- strip-head shearer & butt welder station --- vertical cage accumulator or horizontal spiral accumulator loop --- forming M/C (main driving unit + flattening unit + breakdown section + fin pass section +seam guiding stand + high frequency induction welding system + squeeze welding roller stand + outside scrafing unit + horizontal ironing stand) --- emulsion cooling section --- sizing M/C (main driving unit + sizing section + speed testing unit + straightener + pull-out stand) --- CNC flying saw under computer control --- conveyor table.
3.Technical parameter
4.List of 89 pipe mill
1. Uncoiler
2. Horizontal Accumulator
3. Cutting & welding
4. Forming sizing mill
5. Cutting saw
6. Run-out roll
7. HF welder
5.Advantage
① It is suitable for processing lighting tubes, furniture tubes, decorative tubes, round tubes and
square tubes. The maximum processing speed is 80m / min, which greatly improves the work
efficiency.
② It has high-end configuration, front 7 and rear 5, horizontal roller shaft 80mm, vertical roller
shaft 50mm, main motor 120kW,300kW solid-state high-frequency, etc.
③ Unit land occupation: length * width = 70 * 8m, equipment installed capacity: 400kW
④ Complete supporting facilities and complete equipment
6. Application:
GI, construction, automobile, general mechanical tubing, furniture, agriculture, chemistry

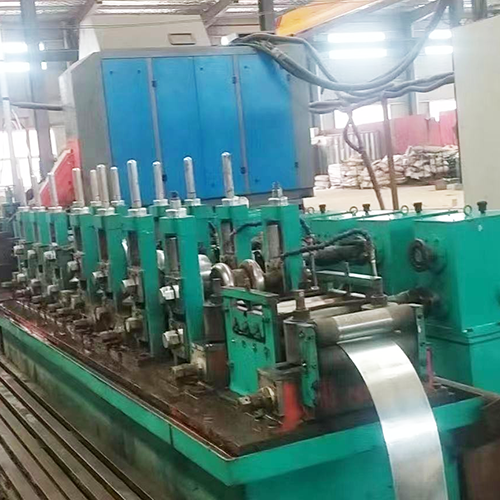

7. Photo
